vLLM

Prerequisites

vLLM v0.14+ — required for KVConnectorBase_V1 support.

Deferred loading requires vLLM v0.16.0+ (maru_async_load, also named maru_enable_deferred_loading in older configurations). Older versions do not retain GPU blocks when a request is cancelled while waiting for a KV load. Maru rejects deferred loading during initialization on those versions; upgrade vLLM or disable that option. Synchronous loading remains available on v0.14+.

vLLM v0.29+ resolves one KV cache layout per model in the engine core (VLLM_KV_CACHE_LAYOUT selects it; NHD and HND are aliases for LBNHC and LBHNC) and hands every layer the logical page [blocks, KV heads, tokens, K|V], whatever the physical order. Maru reads the resolved layout from the engine and splits each head’s row into its K and V halves, so for dense attention a chunk object holds the same K/V-major bytes as a rank-5 cache of vLLM v0.25 and earlier, and the CPU and mixed backends accept these pages. The packed placement kernels have no format for them, so chunk transfers use per-layer copies on these versions. Tested with v0.32.

Storing a hybrid model as several KV cache groups requires vLLM v0.30.0+. A model whose layers keep different kinds of KV cache, such as sliding-window or Mamba-type layers next to full attention, has several KV cache groups; see Hybrid models. On older versions the connector does not declare hybrid support: vLLM then runs sliding-window models as one KV cache group and refuses Mamba hybrids at startup.

uv pip install vllm

See vLLM installation docs for GPU-specific options.

Model support

Whether MaruKVConnector can store a model’s KV cache depends on the KV cache structure that vLLM builds for the model. On the CXL backend (the default), at any tensor parallel size:

KV cache structure	Example models	Status
Full attention (MHA, GQA, MQA), one KV cache group	Llama-3.1-8B	Supported
MLA, one KV cache group	DeepSeek-V2-Lite	Supported; above TP=1, rank 0 alone stores the latent that every rank holds
Sliding window + full attention	gpt-oss-20b	Supported: as several KV cache groups on vLLM 0.30+, or as one group (see Running a hybrid model as one group)
Mamba-type + full attention	Qwen3.5-0.8B	Supported on vLLM 0.30+
Attention groups whose KV heads differ in count or size	MiMo-V2, Inkling	Refused at startup: vLLM gives such groups different block sizes, while the connector stores every group with one block size and one KV shape
DSA: MLA latent + indexer cache	DeepSeek-V3.2, GLM-5	Refused at startup: vLLM 0.32 keeps the latent and the indexer cache, which differ in shape, in one group, while the connector stores every layer of a one-group model in the first layer’s shape
MLA with other kinds of group	GLM-5.3-Flash	Refused at startup: the connector stores several groups only for full attention, sliding window and Mamba-type layers

GPU tests of the supported structures ran with the example models on vLLM 0.32, at tensor parallel sizes 1 and 2. Structures not listed are not tested. Models without attention layers, such as Mamba, are refused above TP=1. Models with several KV cache groups have settings and limits of their own; see Hybrid models. The CPU, mixed and remote_cxl backends take only models with one KV cache group, at TP=1.

Integration Architecture

MaruKVConnector is a native vLLM KV connector that enables direct KV cache sharing between vLLM instances — without any middleware. With the default cxl backend, the KV moves through CXL shared memory.

        flowchart LR
    subgraph prev["Previous (via LMCache)"]
        direction TB
        V1["vLLM"] --> LC["LMCacheConnector"] --> LE["LMCache Engine"]
        LE --> SM["StorageManager"] --> MC["MaruConnector"]
        MC --> MH1["MaruHandler"] --> CXL1["CXL"]
    end

    subgraph direct["Direct (this connector)"]
        direction TB
        V2["vLLM"] --> MKV["MaruKVConnector"]
        MKV --> MH2["MaruHandler"] --> CXL2["CXL"]
    end

    prev --> direct


By removing the LMCache middleware layer, the direct connector achieves:

• Fewer dependencies — only vLLM + Maru (the remote_cxl backend also needs NIXL)

• Zero-copy save path (default cxl backend) — GPU → CXL via single cudaMemcpy (no intermediate CPU buffer)

• Zero-copy load path (default cxl backend) — CXL mmap (CUDA pinned) → GPU via DMA

• No serialization overhead — raw tensor bytes, no MemoryObj conversion

Component Roles

MaruKVConnector implements vLLM’s KVConnectorBase_V1 interface with a dual-role design:

Role	Component	Responsibility
SCHEDULER	MaruSchedulerConnector	Checks chunk-by-chunk which prefix is cached; builds metadata for worker
WORKER	MaruWorkerConnector	Performs actual GPU ↔ CXL data transfers per chunk per layer

Both roles share the same MaruHandler connection to CXL shared memory.

Data Path

Store Path (GPU → CXL)

When a vLLM instance completes prefill, the connector stores KV cache in chunks:

        sequenceDiagram
    participant vLLM as vLLM Worker
    participant MKV as MaruKVConnector
    participant MH as MaruHandler
    participant MS as MaruServer
    participant CXL as CXL Memory

    vLLM->>MKV: save_kv_layer(layer, kv_tensor, attn_metadata)
    loop For each chunk (256 tokens)
        MKV->>MH: alloc(nbytes)
        MH-->>MKV: handle (CXL page)
        MKV->>CXL: dst.copy_(gpu_tensor) — single cudaMemcpy
        MKV->>MH: store(key, handle=handle) — register only, no memcpy
        MH->>MS: register_kv(key, region_id, offset, length)
    end


The save path uses handler.alloc() to get a pre-mapped CXL buffer, then copies GPU tensor data directly into it via torch.Tensor.copy_(). The subsequent store(handle=) call only registers the key in the metadata server — no additional data copy occurs.

Load Path (CXL → GPU)

When a second instance receives a request with a matching prefix:

        sequenceDiagram
    participant Sched as Scheduler
    participant MKV as MaruKVConnector
    participant MH as MaruHandler
    participant MS as MaruServer
    participant CXL as CXL Memory
    participant GPU as GPU Memory

    Sched->>MKV: get_num_new_matched_tokens()
    MKV->>MH: exists(chunk_key) per chunk
    MH->>MS: lookup_kv(key)
    MH-->>MKV: hit count (e.g., 3 of 4 chunks)

    Note over MKV: Worker phase
    MKV->>MH: retrieve(key) per chunk per layer
    MH-->>MKV: MemoryInfo (CXL mmap memoryview)
    MKV->>MKV: torch.frombuffer(info.view, dtype)
    MKV->>GPU: .to(device) — CXL→GPU DMA (pinned via cudaHostRegister)
    MKV->>MKV: Inject into KV cache layer via slot mapping


The CXL mmap region is pinned via cudaHostRegister by MaruHandler’s DaxMapper, so .to(device) triggers a direct DMA transfer from CXL to GPU memory without any intermediate CPU copy.

If CUDA registration fails for a region, the packed connector checks each slab’s actual pin status before passing a host pointer to the placement kernel. Inline loads copy an unpinned slab to the GPU and run the placement kernel on that copy, as deferred loads already do for every slab. Stores gather into one reusable GPU slab and copy it to CXL before publishing the keys. Pinned slabs keep the direct kernel path, including in batches that also contain unpinned slabs. This preserves caching when pinning fails, at reduced transfer performance.

Chunk-Based Storage

Tokens are divided into fixed-size chunks (default 256 tokens) for storage:

Prompt: [tok0..tok255 | tok256..tok511 | tok512..tok767 | tok768..tok900]
         chunk 0        chunk 1          chunk 2          (incomplete, not stored)

Each chunk key = kv_{hash(tok0..end)}_L{layer} — a rolling prefix hash that encodes the full context up to that chunk, enabling partial prefix reuse.

Partial Prefix Reuse

Instance A:
  Request: "The quick brown fox jumps over the lazy dog. Once upon a time..."
  → Stores chunk 0, 1, 2

Instance B:
  Request: "The quick brown fox jumps over the lazy dog. In a galaxy far away..."
  → chunk 0, 1 hit (common prefix), chunk 2 miss
  → Loads chunk 0, 1 from CXL, computes the rest

Requests Maru does not cache

Maru keys a chunk by its token ids alone. A request whose KV also depends on something else neither loads from nor stores to Maru, on any backend: requests with images or other multimodal inputs, a LoRA adapter, a cache_salt, or prompt embeddings. vLLM computes them as usual, and vLLM’s own prefix cache, when enabled (the default), still applies to them because it hashes these inputs. Keying such requests so they can hit is tracked in #116.

Setup

Start Maru server:

maru-server
# Listens on tcp://0.0.0.0:5555 by default

Launch vLLM with MaruKVConnector (dynamic loading):

vllm serve <model> \
    --kv-transfer-config '{
        "kv_connector": "MaruKVConnector",
        "kv_connector_module_path": "maru_vllm",
        "kv_role": "kv_both",
        "kv_connector_extra_config": {
            "maru_server_url": "tcp://localhost:5555",
            "maru_pool_size": "4G"
        }
    }'

The kv_connector_module_path tells vLLM to dynamically import MaruKVConnector from the maru_vllm package. No vLLM source code changes are required.

Second instance (same node):

vllm serve <model> \
    --port 8001 \
    --kv-transfer-config '{
        "kv_connector": "MaruKVConnector",
        "kv_connector_module_path": "maru_vllm",
        "kv_role": "kv_both",
        "kv_connector_extra_config": {
            "maru_server_url": "tcp://localhost:5555",
            "maru_pool_size": "4G"
        }
    }'

Configuration

CPU DRAM cache (M1)

Opt in with maru_storage_backend="cpu" to store KV in the worker’s local DRAM. Start the server with maru-server --cpu-only; this avoids all CXL/RM initialization. The default backend remains CXL.

CPU mode requires maru_cpu_pool_size, a unique maru_engine_id per engine, an explicit immutable-weights maru_cache_namespace, --enforce-eager, and kv_load_failure_policy="recompute" in the KV transfer configuration. It supports one worker, homogeneous unquantized KV layers and synchronous chunkwise transfers. The worker faults the pool in and registers it with CUDA when it opens, as the cxl backend’s regions are, so that GPU copies run at the DMA rate and stores do not fault in fresh pages. This locks the whole pool in memory and adds seconds to startup for tens of GB. A pool larger than the memory available stays pageable, and maru_pin_pools=false keeps any pool pageable. The worker opens the pool in register_kv_caches; if that fails, the first request that loads or stores opens it and waits for the page-lock, as the cxl backend’s first request waits for its region mapping. A full pool skips new stores. Sharing, eviction and async/layerwise CPU transfers are not enabled in M1.

The server tracks process-local CPU replicas and capacity. The scheduler uses a metadata-only connection and cannot read CPU payloads. marutop usage displays CPU pool usage. Expired sessions stop producing hits; M1 requires restarting CPU workers after a metadata server restart.

See the CPU example and lifecycle notes for the complete launch configuration, limits and handler read-lease API.

CPU and CXL together (M2a)

Set maru_storage_backend="mixed", provide both maru_cpu_pool_size and maru_cxl_pool_size, and run a CXL-enabled server (without --cpu-only). Both pools belong to the same worker; one prefix can span both media. The CPU mode’s single-worker, eager and synchronous-transfer requirements also apply.

maru_write_order=["cpu", "cxl"] fills CPU first and falls back to CXL when full. Reverse the list for CXL-first placement. maru_read_order independently selects an existing replica; its default is also ["cpu", "cxl"]. Both pools are fixed: when both are full, new stores are skipped. The directory records and reports CPU/CXL pools separately through l1_storage and marutop usage.

This stage scopes both pools to the owning worker and isolates typed CXL keys from the legacy shared cache. Cross-engine CXL access, automatic replication, eviction and SSD are later milestones. See the mixed-mode example for launch configuration, memory lifetime and validation instructions.

CXL on memory nodes over RDMA

Set maru_storage_backend="remote_cxl" to run engines on nodes without CXL. The KV stays in the CXL memory of memory nodes and moves over RDMA: the worker reads and writes it with one-sided RDMA, and only control messages go to maru-server and to the memory node. Provide maru_server_url, maru_pool_size (the CXL memory the engine gets at a time, as with cxl), a unique maru_engine_id, an immutable-weights maru_cache_namespace, maru_remote_cxl_agent_key_file (a copy of the memory nodes’ remote CXL agent key, default ~/.maru/remote-cxl-agent.key) and, optionally, maru_rdma_device (the worker’s RDMA NIC, e.g. mlx5_0:1).

Resources flow as for the cxl backend: the resource manager gives regions to maru-server and maru-server gives them to the worker, one region when its storage session opens and one more each time its regions are full. Only the step that maps a region moves, from the Handler to the memory node.

Each memory node runs a remote CXL agent (maru-remote-cxl-agent), a service shared by every app: it maps the regions Handlers ask for and registers them with the node’s NIC. With NIXL installed, ./install.sh sets it up as maru-remote-cxl-agent.service, which starts and stops with the resource manager; its settings (NIC, port 9860, key file) are in /etc/maru/remote-cxl-agent.env. It listens on the NIC’s address on the RDMA network, and every worker and maru-server proves the remote CXL agent key (/etc/maru/remote-cxl-agent.key, created by the installer) on each connection, so only processes that can read a copy of the key map regions, as only users that can open the DAX device map them on a CXL-attached node. The protocol itself is not encrypted, like the resource manager’s, so keep the RDMA network to the hosts of the deployment. A memory node of a shared pool that runs no resource manager installs the service alone (install-maru-remote-cxl-agent --standalone, which starts it at boot on its own) and sets MARU_RM_ADDRESS to the node that does; the resource manager then listens on a network address, as in the multi-node configuration. maru-server takes the pool’s remote CXL agents with --remote-cxl-agent host:port (one per memory node) and --remote-cxl-agent-key-file, and hands the list to the workers. Engines read each other’s keys under a server lease; a reader gets a read handle, which maps a region but cannot release it. When a worker stops, maru-server keeps its regions that hold keys and holds their mapping, so the keys stay readable as a stopped cxl Handler’s keys do; it gives a kept region back when the resource manager is full. A region goes back only after its remote CXL agent deregistered it, so a late RDMA WRITE fails at the NIC instead of landing in the next owner’s KV.

The backend stores KV chunkwise and needs --enforce-eager, kv_load_failure_policy="recompute" and one worker per engine. It turns on maru_async_load and maru_async_store unless they are set: loads run between steps and stores after the forward, so an RDMA transfer that waits for a slow memory node does not hold up the engine, and asynchronous loads run with vLLM’s asynchronous scheduling on. Asynchronous loads need vLLM 0.16 or later, and an explicit maru_rdma_staging_size must then hold two requests (one for loads, one for stores). Setting them to false runs loads and stores on the engine thread; synchronous loads also need --no-async-scheduling. With asynchronous stores the engine thread takes only a staging slot for a chunk, waiting on no lock and no network; the thread that sends the store gives each chunk its remote page, and a background thread asks for a new region or evicts before the free pages run out, so that thread rarely waits. RDMA transfers run outside the client’s lock. The worker’s staging buffer is registered with CUDA, so the copy kernel moves KV between the GPU and the staging buffer as it does for mapped CXL memory. NIXL is required (uv pip install nixl, or pip install nixl without uv). See the remote CXL example for one-host and multi-node launch steps.

Transfer errors and worker recovery

A timeout or a native NIXL status-query error does not establish that the NIC has stopped accessing memory. Maru keeps the affected transfer handle and its staging slots registered until completion and handle release are confirmed. Other peers’ completed or unposted READ slots are returned. Failed stores are not published, and failed loads follow the configured recompute policy.

Persistent native errors can retain those slots for the lifetime of the worker. Repeated errors can exhaust its staging capacity, causing stores to be skipped and loads to miss. Look for RDMA READ not confirmed, RDMA WRITE not confirmed and RDMA transfers still own staging memory in the worker log. Closing or reconnecting the Handler alone may leave the registered memory retained.

To recover capacity, stop and restart the entire vLLM engine that owns the affected worker. Confirm that its old worker processes have exited before starting replacements; terminating only the HTTP frontend is insufficient if the workers remain alive. The replacement creates a fresh NIXL agent and staging buffer. Retired regions can become cold misses, so allow recomputation and cache warm-up. Restarting only the memory-node agent does not establish that a live worker’s uncertain transfers have been reclaimed. Do not force-return their slots or drop live RM holds to recover capacity. Safe automatic reclamation inside a running worker remains follow-up work.

Several memory nodes and pools

Shared pool. Several memory nodes can share one CXL memory, as hosts on a CXL switch do. Each of them runs a remote CXL agent; maru-server takes all of them, with --remote-cxl-agent repeated or comma separated, and hands the list to the workers. Each region is served by one memory node, picked by a hash of the region number over that list, so the region’s owner and its readers map it at the same node and move its KV through that node’s NIC. The memory nodes use the same remote CXL agent key and the multi-host settings of System Setup.

Several pools. Each pool has its own maru-server. List them in maru_server_url, comma separated ("tcp://10.0.0.2:5555,tcp://10.0.0.3:5555"): the worker opens a storage session with each, and sends each request to one pool, picked by a hash of the request’s first chunk key, so all chunks of a request stay in one pool. A pool whose maru-server does not answer when the worker starts only makes its prefixes miss; the worker connects to it once it answers.

Connector settings

Settings in kv_connector_extra_config:

Parameter	Type	Default	Description
maru_server_url	str	tcp://localhost:5555	MaruServer address; with remote_cxl, a comma-separated list, one maru-server per pool
maru_pool_size	str/int	1G	CXL memory an engine gets at a time (4G, 500M, etc.): its first allocation, and each further one when its memory is full; required with remote_cxl, where each allocation is one region
maru_chunk_size	str/int	4M	Maru page size (CXL allocation unit)
maru_instance_id	str	auto	Unique instance ID (default: auto-generated UUID)
maru_eager_map	bool	true	Pre-map other instances’ CXL regions on connect
maru_kv_chunk_tokens	int	256	KV cache chunk granularity (in tokens)

Asynchronous transfer settings, all opt-in:

Parameter	Type	Default	Description
maru_async_load	bool	false (true for remote_cxl, for models with several KV cache groups, and above TP=1)	Load cache hits on a background thread between steps instead of inside the forward pass
maru_async_store	bool	false (true for remote_cxl)	Complete the store after the forward pass instead of on the last attention layer
maru_overlap_load_with_compute	bool	false	Overlap an async load’s per-layer transfers with attention compute (either storage format)
maru_overlap_release_after_layers	int	1	Layers that must be copied before an overlapped load is reported complete and vLLM may schedule the request; requires maru_overlap_load_with_compute

Storage format — how a request’s KV is grouped into CXL objects:

Parameter	Type	Default	Description
maru_use_layerwise	bool	false	false = chunkwise: one object per chunk holding every layer. true = layerwise: one object per (chunk, layer)

Diagnostics and fallback guards — leave these at their defaults in normal operation:

Parameter	Type	Default	Description
maru_pin_pools	bool	true	cpu and mixed: fault the pools in and register them with CUDA when they open, unless a CPU pool is larger than the memory available; false keeps them pageable
maru_load_copy_ahead	int	2	Chunk slabs a load without a placement kernel (vLLM 0.29+ layouts) copies to the GPU ahead of its per-layer injects, on a side stream; 0 copies each slab in line. Each thread and stream that loads keeps this many slabs of GPU memory for the life of the worker, each 2 × layers × chunk tokens × KV hidden size × dtype size (32 MiB for Llama 3.1 8B at 256-token chunks). They are allocated on the first load, after vLLM has sized its KV cache, so gpu_memory_utilization does not account for them
maru_load_admission_window	int	0	Cap on asynchronous loads in flight; 0 submits all
maru_log_timing	bool	false	Emit per-request timing diagnostics to stderr

Renamed parameters

These three knobs were renamed to name the axis a deployer chooses. The former names are still accepted and log a deprecation warning:

Former name	Current name
maru_enable_deferred_loading	maru_async_load
maru_enable_write_behind	maru_async_store
maru_enable_layerwise_overlap	maru_overlap_load_with_compute

maru_enable_async_loading and maru_enable_fused_load were removed. They gated a load path that the packed storage layout never entered, and no measurement ever exercised it.

Asynchronous load and store

By default both the cache-hit load and the populate store run to completion inside the model worker’s forward pass. The two settings below move that work off the critical path; they are independent and can be enabled separately.

maru_async_load parks a cache-hit request while a background thread performs the Maru lookup and the CXL→GPU transfer, then reports completion through a CUDA event. The forward pass no longer waits on the retrieve RPC. This is the mechanism vLLM itself calls an asynchronous load: the request waits in WAITING_FOR_REMOTE_KVS.

A parked request initially holds blocks for its loaded prefix. It needs room for the rest of its prompt and any speculative lookahead before it can run. On vLLM < 0.23, Maru budgets this full requirement for parked requests and earlier waiters, capped at the model’s maximum length. A request that does not fit stays in WAITING and keeps its place until vLLM gives it blocks. The first request in line is admitted on its own; vLLM sizes the cache to fit one maximum-length request.

On vLLM 0.23+ without speculative lookahead, Maru uses vLLM’s reservation for in-flight prefills without adding its own block budget. This allows loads to overlap when their initial allocations fit, even if their complete prompts would not all fit at once. With speculative lookahead (for example, draft-model or EAGLE decoding), Maru retains its budget: the upstream reservation counts prompt tails but can leave too little room for the oldest request’s lookahead. Methods without lookahead slots, such as ngram, use the ordinary version rule. vLLM 0.31+ reserves the draft slots of every speculative method itself, so a load Maru admits can still wait for vLLM’s own reservation.

This budget counts GPU blocks; maru_load_admission_window below counts loads in flight.

maru_async_store lets the store finish after the forward pass returns, so the first token of the current step is not delayed by the GPU→CXL copy and the metadata registration.

maru_load_admission_window bounds how many asynchronous loads may be in flight at once. The default 0 submits every load immediately. Set a positive value only if you need request-level backpressure.

Storage granularity and overlap

maru_use_layerwise selects how a request’s KV is grouped into CXL objects. The two layouts differ throughout the store and load paths:

	chunkwise (false, default)	layerwise (true)
One CXL object holds	every layer of one chunk	one (chunk, layer) pair
Key	<chunk_key>	<chunk_key>_L<layer_idx>
Keys per request	chunks	chunks x layers
CXL page size	per-layer size x layers	per-layer size
Completion marker	the chunk key itself, registered once every layer is written	a separate _DONE key
Store	one gathered D2H per chunk	one write per layer
Load	whole slab per chunk, contiguous pages coalesced	one retrieve per (layer, chunk)

The key count is the practical difference: layerwise resolves one key per (chunk, layer) instead of one per chunk, so both the key count and the retrieve metadata RPC volume grow by the model’s layer count. Chunkwise is the default for that reason; layerwise remains available for deployments that need per-layer object granularity.

Both layouts store MLA models. A chunkwise MLA object holds one latent plane per layer where other models hold a K and a V plane, and moves through the per-layer copies rather than the gather kernel.

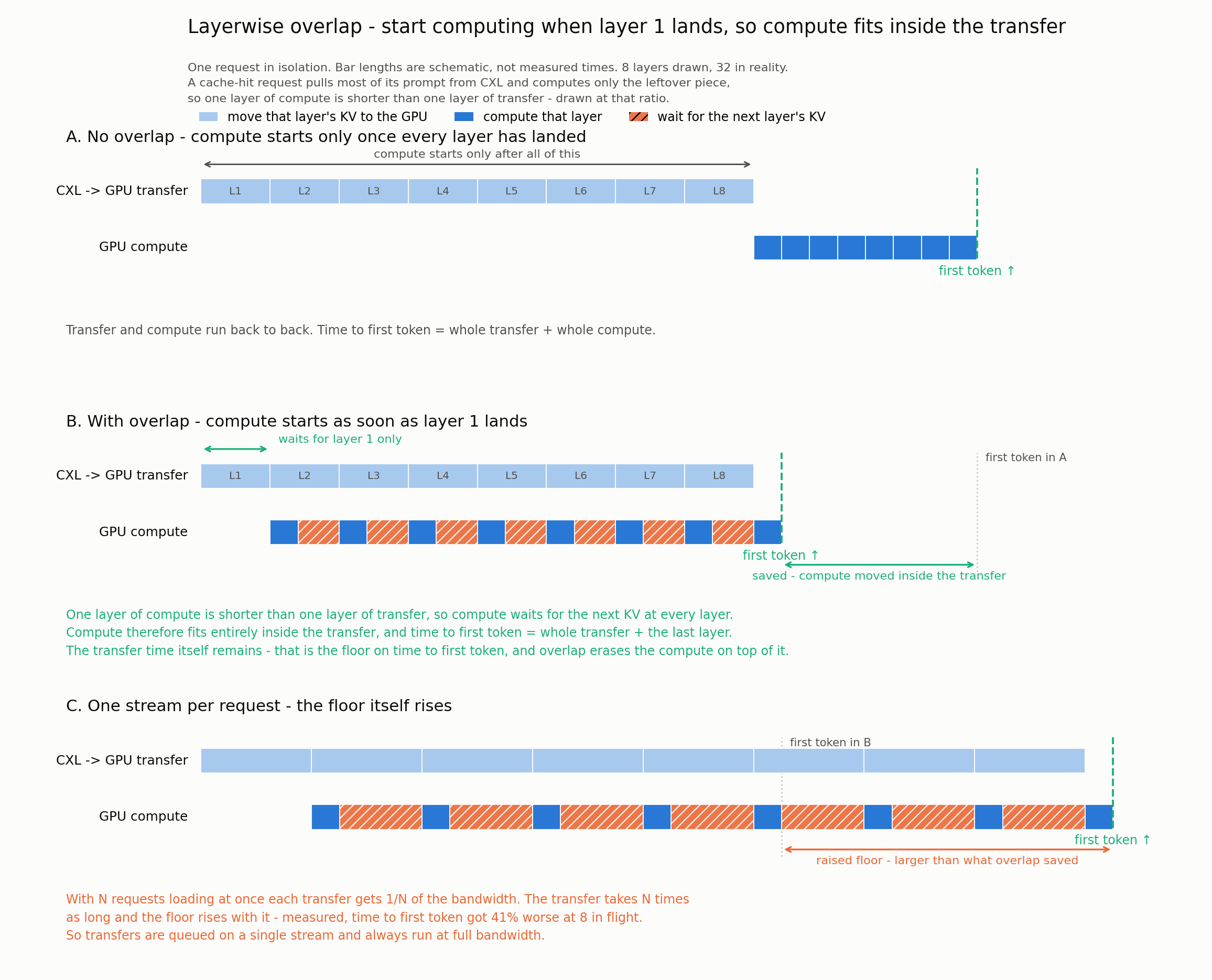

maru_overlap_load_with_compute works with either storage layout and requires maru_async_load; it pipelines a request’s per-layer transfers against attention compute. Under the chunkwise layout each layer is sliced out of the chunkwise slabs; under the layerwise layout each layer’s own chunk objects are gathered directly. Every (chunk, layer) key is still resolved before the request is released, so the layerwise layout pays its full metadata RPC volume up front — only the transfers overlap compute. The connector logs a warning and disables the knob when maru_async_load is off.

The loader thread queues the per-layer copies while the request is still parked. The load is reported complete — which is what lets vLLM schedule the request — once maru_overlap_release_after_layers of them have landed, one layer by default, so the request’s prefill compute runs while the remaining layers arrive rather than after them. A cache-hit request computes only the tokens left over past its cached chunks, so one layer of compute is shorter than one layer of transfer: the compute fits inside the transfer and the transfer time is what sets time to first token. All parked-request transfers share one stream. That keeps each at full CXL bandwidth — splitting them across streams makes each transfer take as many times longer as there are loading requests, raising that floor — and it means a later request’s first layer only lands once the earlier one has finished, so requests take their turn without any extra admission mechanism.

The knob therefore applies at any concurrency. On a 16k prompt it lowered cache-hit TTFT by 24%, 25% and 17% at 2, 4 and 8 concurrent requests, and raised throughput throughout; per-token generation time rose 4-5% at 4 and 8 concurrent requests, which is the cost of every request starting earlier.

Choosing the release point

maru_overlap_release_after_layers sets how many layers must be copied before the load is reported complete. The layers still in flight at that point are waited for inside the request’s own forward pass, and those waits are taken on the model stream, which carries the whole batched step — so reporting early charges one request’s remaining load time to every request scheduled alongside it.

Waiting for more layers first keeps that cost out of the batch: while the request is unscheduled it is the only thing waiting on its own load. It does not delay the request’s own first token either, which needs the last layer no matter when the request was scheduled — the hold is free while it stays inside the delay the scheduler takes to re-admit the request anyway, and only past that does the count begin costing time to first token.

Which way to err depends on whether a layer’s copy or a layer’s compute takes longer:

• Compute slower than the copy — the forward pass never catches up, there is nothing left to wait on, and the default of 1 is already right.

• Copy slower than compute — the forward pass catches up almost at once and blocks on layers still in flight. Raising the count trades those blocks away.

Longer prompts and more concurrent loads both push a deployment toward the second case. The value is an absolute layer count, not a fraction of model depth, so one tuned on a 32-layer model does not carry to an 80-layer one, and a value at or above a model’s KV-layer count reports the load only after the last layer — the overlap turned off in all but name. Sweep it per deployment.

vllm serve <model> \
    --kv-transfer-config '{
        "kv_connector": "MaruKVConnector",
        "kv_connector_module_path": "maru_vllm",
        "kv_role": "kv_both",
        "kv_connector_extra_config": {
            "maru_server_url": "tcp://localhost:5555",
            "maru_pool_size": "4G",
            "maru_async_load": true,
            "maru_overlap_load_with_compute": true,
            "maru_overlap_release_after_layers": 7
        }
    }'

The count is read only by the overlap path, so maru_overlap_load_with_compute must be on for it to mean anything — along with the overlap’s own prerequisite, maru_async_load enabled. Either storage format can use the overlap, so maru_use_layerwise does not constrain this count. Raising the count on its own changes nothing; the connector logs a warning saying so, and a separate warning if the overlap was requested but its prerequisite is unmet.

maru_kv_chunk_tokens

Controls how many tokens per chunk when storing KV cache:

• Smaller (64, 128): Finer prefix reuse granularity, more maru keys

• Larger (512, 1024): Fewer keys, but coarser reuse granularity

• Default 256: Good balance for most use cases

• Auto-aligned: Automatically adjusted to a multiple of vLLM block_size

maru_pool_size

CXL memory an instance gets at a time: its first allocation, and each further one when its memory is full. The cxl and remote_cxl backends use it the same way; with remote_cxl each allocation is one region. (cpu and mixed take fixed budgets instead: maru_cpu_pool_size, maru_cxl_pool_size.) The estimate below sizes one allocation. Under tensor parallelism it applies to each rank that stores, and num_kv_heads is one rank’s share: the model’s KV heads divided by the TP size, and at least 1 (see Tensor parallelism):

pool_size ≈ num_layers × kv_head_dim × num_kv_heads × 2(K+V) × max_cached_tokens × dtype_bytes

Example (Llama 7B, fp16):

32 layers × 128 head_dim × 32 heads × 2(K+V) × 4096 tokens × 2 bytes ≈ 2GB

Tensor parallelism

The CXL backend supports tensor parallelism for the KV cache structures in Model support. vLLM starts one connector per TP worker, and each worker stores and loads only the KV it holds. Every rank hashes a prompt to the same chunk keys, so a key must also name the slice: if all ranks registered their heads under one key, the server would keep the first and every other rank would load heads that are not its own.

Chunk keys therefore name a slice by what it holds:

A worker holds	Chunk key	Example
Every KV head: TP=1, or an MLA latent that each rank holds in full	kv_<hash>	Unchanged from earlier releases
KV heads [a, b)	kv_<hash>_h<a>-<b>	Llama-3.1-8B (8 KV heads) at TP=2: _h0-4 on rank 0, _h4-8 on rank 1
Rank r’s part of a slice named by rank: each Mamba-type state, and the attention KV of sliding-window and full layers when TP exceeds the KV heads (below)	kv_<hash>_tp<TP>_r<r>, then _c<chunk_tokens>_g<group_id> with several KV cache groups	Qwen3.5-0.8B at TP=2: _tp2_r0_c544_g0 on rank 0

The layerwise format appends its _L<layer> and _DONE suffixes after the slice. A model with several KV cache groups (see Hybrid models) appends _c<chunk_tokens>_g<group_id> and names the KV heads of each attention group, full or sliding window, as above: Qwen3.5-0.8B at TP=2 stores kv_<hash>_h0-1_c544_g3 on rank 0.

Ranks that hold identical KV share one slice name: the MLA latent, and the heads vLLM replicates when there are more TP ranks than KV heads (4 KV heads at TP=8 put each head on two ranks). The lowest of those ranks stores the slice and the others only load it. A Mamba-type state is named by rank instead: vLLM divides every state evenly over the ranks, and a rank’s Gated DeltaNet conv state gathers its share of the q, k and v channels, which no head range describes. No two ranks hold the same part, so every rank stores its own, including a rank that only loads replicated heads. A model with several attention groups, such as gpt-oss, names its attention KV by rank as well at a tensor parallel size above its KV heads: vLLM then replicates each group’s heads by that group’s own count, which the connector cannot tell from the model’s. Every rank then stores its own copy of its heads. So does a model whose sliding-window and full-attention layers vLLM keeps in one group, as it does with its hybrid KV cache manager off (--disable-hybrid-kv-cache-manager, or vLLM before 0.30): one rank’s object holds both kinds of layer, and two ranks that share a full-attention head can hold different sliding-window heads.

Because keys name heads rather than ranks, engines of different TP sizes share exactly the slices that hold the same heads. With 8 KV heads, TP=8 and TP=16 engines share every slice, while TP=2 and TP=4 engines share none. A slice is never read as a different set of heads. Mamba-type states differ for every TP size, so a model with such a group hits only on chunks that an engine of the same TP size stored.

The scheduler reports a chunk as cached only when every slice that the hit needs is stored, so no rank is asked to load a slice the lookup did not find. It has no rank of its own, but it knows the TP size and the model’s KV heads, so it lists every slice itself and checks all of them in one batch_exists.

The ranks do not talk to each other. vLLM sends every worker the same metadata and treats a load or store as finished only once every worker reports it. A load that fails on any rank is handled for the whole request by kv_load_failure_policy: under vLLM’s default "fail" the request fails; under "recompute" vLLM recomputes it from the first block any worker reports as failed, or from its first token for a model with several KV cache groups (see Load failures).

Above TP=1 every load is parked (maru_async_load=true, which needs vLLM 0.16+). The connector turns it on unless it is set, and refuses maru_async_load=false. A parked load finishes on every rank, and vLLM merges every rank’s result, before the request computes. An inline load runs in the step that computes its request, and a rank whose load fails is the only one that knows: the all-reduce in every layer would spread its unfilled KV to every rank, and the other ranks would store what they computed from it (#135). For the same reason, a layerwise-overlap load (maru_overlap_load_with_compute) whose per-layer copies the loader thread cannot queue fails while the request is parked, instead of having the forward issue them as it does at TP=1.

Each worker process connects its own MaruHandler:

• maru_pool_size applies to each TP rank that stores. Without replicated KV heads a rank stores 1/TP of every chunk, so ranks with P / TP each hold as many tokens as a single TP=1 worker with P. A rank that only loads replicated heads or an MLA latent stores none of them, only its own part of each Mamba-type state. A rank that stores nothing at all, such as every rank but rank 0 of an MLA model, takes one page when it connects instead of maru_pool_size.

• A configured maru_instance_id becomes <id>-tp<rank>, so that the server sees each rank as its own owner. With data parallelism, replica d > 0 adds its index, as <id>-dp<d>-tp<rank> (<id>-dp<d> at TP=1). Leaving the id unset already gives every process its own UUID.

Pipeline parallelism and decode or prefill context parallelism are refused at startup: a pipeline stage would have to address its layers locally in the slab and the placement kernel, which index them globally. The CPU, mixed and remote_cxl backends still require TP=1.

Hybrid models

vLLM puts layers that keep different kinds of KV cache into separate KV cache groups, for example sliding-window and full-attention layers, or Gated DeltaNet (Mamba-type) and full-attention layers. On vLLM 0.30+ the connector stores each group’s part of a chunk as its own CXL object, keyed <chunk_key>_c<chunk_tokens>_g<group_id>, and reports a hit only for chunks that every group can resume from. A model with one group is stored as before.

The key names the chunk length because a chunk key hashes the prompt only up to the chunk’s end. With a Mamba-type group a chunk is one vLLM block, and vLLM sizes that block from the per-rank state and attention page, so engines with different TP sizes (or KV cache dtypes) can use different chunks: Qwen3.5-0.8B has 544-token chunks at TP=2 and 272-token chunks at TP=4. Their objects for the same prompt prefix then get different keys, and neither engine loads the other’s.

Supported models

Model	KV cache groups	Status
Qwen3.5 (tested: Qwen3.5-0.8B)	Gated DeltaNet (Mamba-type) + full attention	Supported; tested on vLLM 0.30 and 0.32
gpt-oss (tested: gpt-oss-20b)	sliding window + full attention	Supported; tested on vLLM 0.30 and 0.32
Other models whose groups are only full attention (FullAttentionSpec), sliding window (SlidingWindowSpec) or Mamba-type (MambaSpec), with one KV head count and head size in every attention group		Pass the connector’s group check; not tested
MiMo-V2, Inkling	sliding window + full attention, the sliding-window layers with KV heads of their own	Not supported yet; refused at startup
DeepSeek-V3.2, GLM-5 (DSA)	MLA latent + indexer cache, which vLLM 0.32 puts in one group	Not supported yet; refused at startup
GLM-5.3-Flash	MLA, indexer cache, CircularBufferSpec (KpoolTailSpec in vLLM 0.30), KDA (Mamba-type)	Not supported yet
Llama 4	chunked local + full attention	Not supported yet
Other models with several groups where a group uses another type: MLA, static sink-token attention (SinkFullAttentionSpec), cross attention, or a subclass of a supported type such as RSWASpec		Not supported yet

The connector checks the group types and the attention groups’ KV shapes at startup and refuses an unsupported model with what it found. It also refuses one group whose layers keep different KV cache specs (vLLM’s UniformTypeKVCacheSpecs), as the DSA models’ does: a one-group model is stored in its first layer’s shape. A model that passes these checks can still be refused when the worker registers its KV cache, if the tensors do not match the groups’ specs. A model whose extra groups are sliding-window or chunked-local attention can run as one group instead; see Running a hybrid model as one group.

Tensor parallelism is supported (see Tensor parallelism); GPU tests of hybrid models ran at tensor parallel size 1, and at size 2 on vLLM 0.32. Hybrid models are supported on this connector only, not on the LMCache path.

Required settings

The connector refuses to start a model with several groups unless:

• maru_storage_backend is cxl (the default). The CPU, mixed and remote_cxl backends take one group only.

• maru_use_layerwise is false (the default). Several groups are stored in chunkwise format only.

• Speculative decoding is off.

• Mamba-type groups use vLLM’s align Mamba cache mode. vLLM picks it when prefix caching is on, which is the default. Keep prefix caching on: with --no-enable-prefix-caching, vLLM sets the mode to none even if --mamba-cache-mode align is given, and the connector refuses the model. Do not pass --mamba-cache-mode all.

• Every group uses vLLM’s one block_size. vLLM normally sets the groups up this way.

• Every attention group has the same KV heads per rank and head size. vLLM gives groups whose heads differ different block sizes, and the connector stores every group in one shape.

• The attention backend keeps whole blocks. FlashInfer, and FlashAttention 4 with head size 256 on compute capability 10.x/11.x, split each block into smaller kernel blocks; FlashInfer is vLLM 0.30’s default on B200 and GB200. This affects Gated DeltaNet models such as Qwen3.5 and Qwen3-Next, whose blocks are large. Use --attention-backend TRITON_ATTN, or FLASH_ATTN outside the FlashAttention 4 case. Sliding-window models with 16-token blocks, such as gpt-oss, are not affected.

• maru_chunk_size, if set, holds the largest (chunk, group) object. Leave it unset to size it automatically.

• Loads are parked (maru_async_load=true). The connector turns it on for a model with several groups unless it is set, and refuses maru_async_load=false: vLLM cannot take a failed inline load of such a model correctly; see Load failures.

vllm serve Qwen/Qwen3.5-0.8B \
    --kv-transfer-config '{
        "kv_connector": "MaruKVConnector",
        "kv_connector_module_path": "maru_vllm",
        "kv_role": "kv_both",
        "kv_load_failure_policy": "recompute",
        "kv_connector_extra_config": {
            "maru_server_url": "tcp://localhost:5555",
            "maru_pool_size": "4G",
            "maru_async_load": true
        }
    }'

On B200 or GB200, add --attention-backend TRITON_ATTN.

What differs from a model with one group

• Chunk size. A Mamba-type group keeps its state only at block ends, so with such a group a chunk is one vLLM block (544 tokens for Qwen3.5-0.8B) and maru_kv_chunk_tokens is overridden with a warning. Without one, maru_kv_chunk_tokens works as before.

• Hits end at a chunk boundary: a 1,024-token gpt-oss prompt hits 768 tokens, where one group would hit 1,008. A Mamba-type group can resume only from a chunk where an earlier request’s prefill step ended, because vLLM keeps the state only at step ends. For example, with --max-num-batched-tokens 2048 a 2,300-token Qwen3.5-0.8B request running alone is prefilled in steps that end at 1,632, 2,176 and 2,300 tokens; only the first two are chunk ends. A later request that shares its first 1,700 tokens hits 1,632 tokens; one that shares its first 1,500 tokens hits nothing.

• With a Mamba-type group, a repeated prompt can hit nothing. A hit stops short of the prompt’s last token. A prompt whose length is a multiple of the chunk and that was prefilled in one step keeps its only state at its last chunk, which the hit cannot include, so sending it again hits nothing. Benchmarks whose prompt length is a multiple of the chunk show this as stores without hits.

• Stores run right after the forward. Sliding-window and Mamba-type objects are always stored before the step ends, because vLLM frees those blocks while the request runs. maru_async_store defers only full-attention objects that use the maru_kv_ops kernel; vLLM 0.30’s attention layouts have no kernel format, so on vLLM 0.30 every object is stored before the step ends.

• Loads. maru_overlap_load_with_compute is turned off with a warning for any model with several groups: Mamba-type state must be complete before the forward, and per-layer overlap of the attention groups alone is not implemented.

• CXL space. All groups share one pool and one page size, that of the largest (chunk, group) object. A chunk takes one page per attention group, plus one page per Mamba-type group at chunks where a prefill step ended. For gpt-oss-20b that is two 12-layer pages instead of one 24-layer page, so maru_pool_size estimates stay about the same. For Qwen3.5-0.8B a step-end chunk takes four pages, because its three Gated DeltaNet groups hold three times the chunk’s attention KV; other chunks take one.

Load failures

vLLM’s kv_load_failure_policy decides what happens to a request whose KV load fails:

• fail (vLLM’s default) ends the request with an error.

• recompute computes the request again; with several groups vLLM restarts it from the first token.

With several groups every load is parked, and Maru reports a failed parked load by its request. An inline load could be reported only by its blocks: vLLM 0.31 and later stop the engine on a block-level failure of a model with several groups, whatever the policy, since block ids are unique only within a group (#126), and under recompute vLLM 0.30’s V2 model runner resumes the recomputed request from the wrong position and can return wrong output (vllm-project/vllm#49250). The connector therefore turns maru_async_load on for such a model and refuses maru_async_load=false. Upstream changes that would allow inline loads again are tracked in #127.

After a failure is reported, the scheduler checks keys with MaruServer again instead of trusting earlier lookups. When vLLM asks again about a request whose load failed, the request is computed without Maru, with every backend.

Running a hybrid model as one group

A model whose extra groups are sliding-window or chunked-local attention can run as one KV cache group with --disable-hybrid-kv-cache-manager; the connector’s refusal messages suggest it. vLLM then keeps those layers’ KV for every token, as for full attention, and Maru stores the model as it stores any one-group model. Mamba-type groups cannot be merged this way. This path is tested with gpt-oss, not with Llama 4.

• If some layers use a sliding window and others do not, as in gpt-oss, FlashInfer (vLLM 0.30’s choice for gpt-oss on Blackwell) refuses the single group. Add --attention-backend TRITON_ATTN.

• On vLLM 0.30 a one-group model stores each miss layer by layer during the forward, which is much slower than the several-group store. For gpt-oss-20b with TRITON_ATTN (2,100-token prompts, 8 concurrent requests, vLLM prefix caching off, one RTX PRO 6000), mean miss TTFT was 3.3 s as one group and 0.44 s as several groups, against 0.31 s without Maru (#113).

Comparison with LMCache Path

Aspect	Via LMCache	Direct (this connector)
Dependencies	vLLM + LMCache + maru	vLLM + maru
Middleware	LMCache Engine, StorageManager, RemoteBackend	None
Serialization	LMCache MemoryObj conversion	torch tensor ↔ bytes direct
Prefix matching	LMCache CacheEngineKey hashing	vLLM token prefix hashing
Configuration	LMCACHE_CONFIG_FILE YAML	kv_connector_extra_config JSON
Storage backends	cxl	cxl, cpu, mixed, remote_cxl
Save path (cxl backend)	GPU → CPU → bytes → alloc + memcpy → CXL	GPU → CXL (single DMA via alloc)
Load path (cxl backend)	CXL → clone → CPU → GPU	CXL → GPU (single DMA, pinned)

Troubleshooting

MaruServer Connection Failure

ERROR: Failed to connect to MaruServer at tcp://localhost:5555

Verify maru-server is running and accessible.

CXL Memory Exhausted

ERROR: Cannot allocate page for key ...

Increase maru_pool_size or restart maru-server to free memory.

chunk_tokens Alignment Warning

WARNING: maru_kv_chunk_tokens 300 not aligned to block_size 16, adjusted to 288

Normal behavior. Automatically adjusted to a multiple of vLLM’s block_size.

BFloat16 Store Errors

TypeError: Got unsupported ScalarType BFloat16
# or
RuntimeError: can't convert bfloat16 to numpy

BFloat16 models (e.g., Llama 3) fail with numpy-based serialization because numpy has no bfloat16 dtype. The connector handles this by using torch.Tensor.contiguous() and raw byte views instead of .numpy(). If you see this error, ensure you are using the connector from this PR or later — older versions may use numpy conversion paths.

Garbage Output on Second Instance

KV cache data corruption usually means chunks were concatenated as 1D bytes instead of being injected per-chunk. Ensure per-chunk injection is used (the current connector handles this correctly).

For runnable examples, see vLLM Examples.

See also: Architecture Overview, MaruHandler Design, LMCache
