LMCache Integration¶

Integration Architecture¶

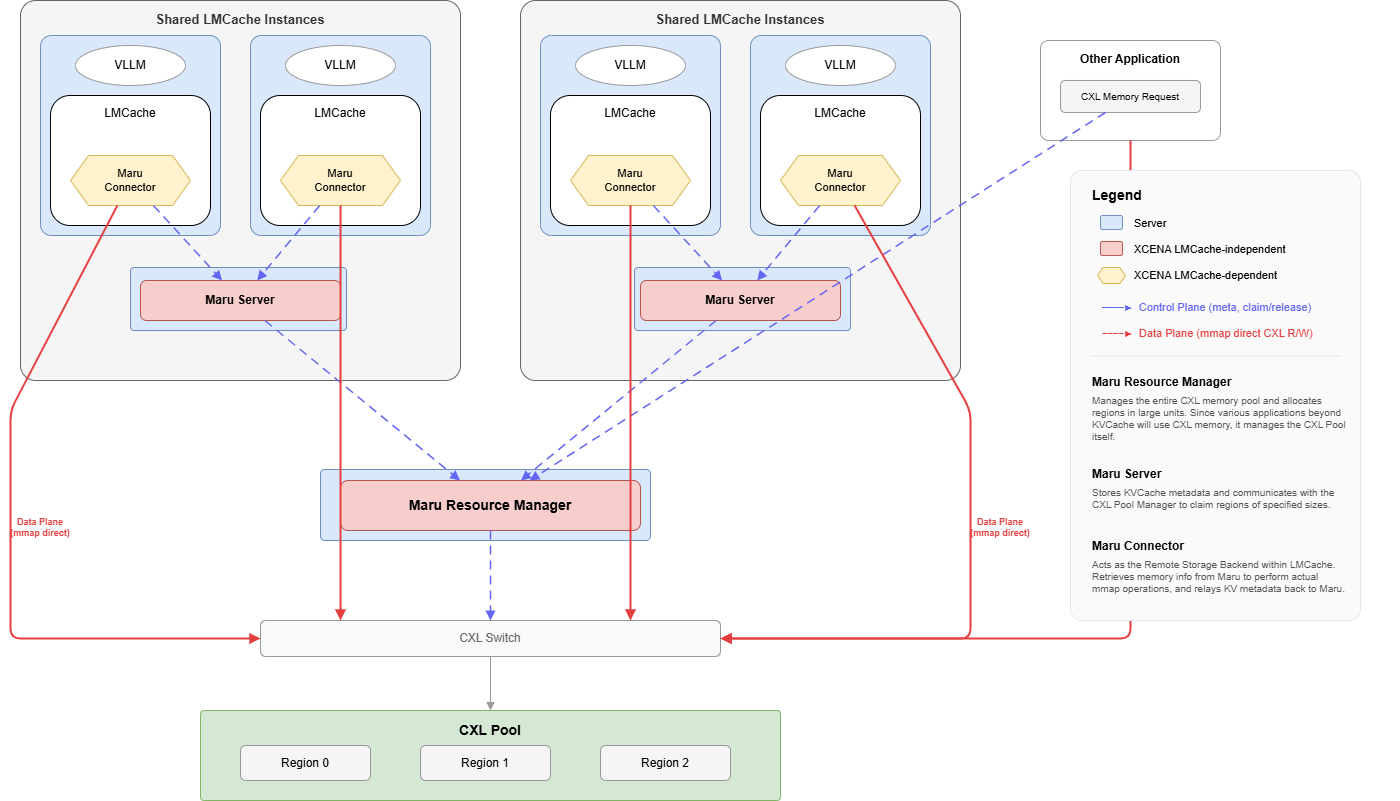

The full stack from inference engine to shared memory:

System-level architecture

Control Plane (dashed arrows) — metadata RPC: KV registration, region claim/release.

Data Plane (solid arrows) — mmap direct CXL read/write, zero-copy.

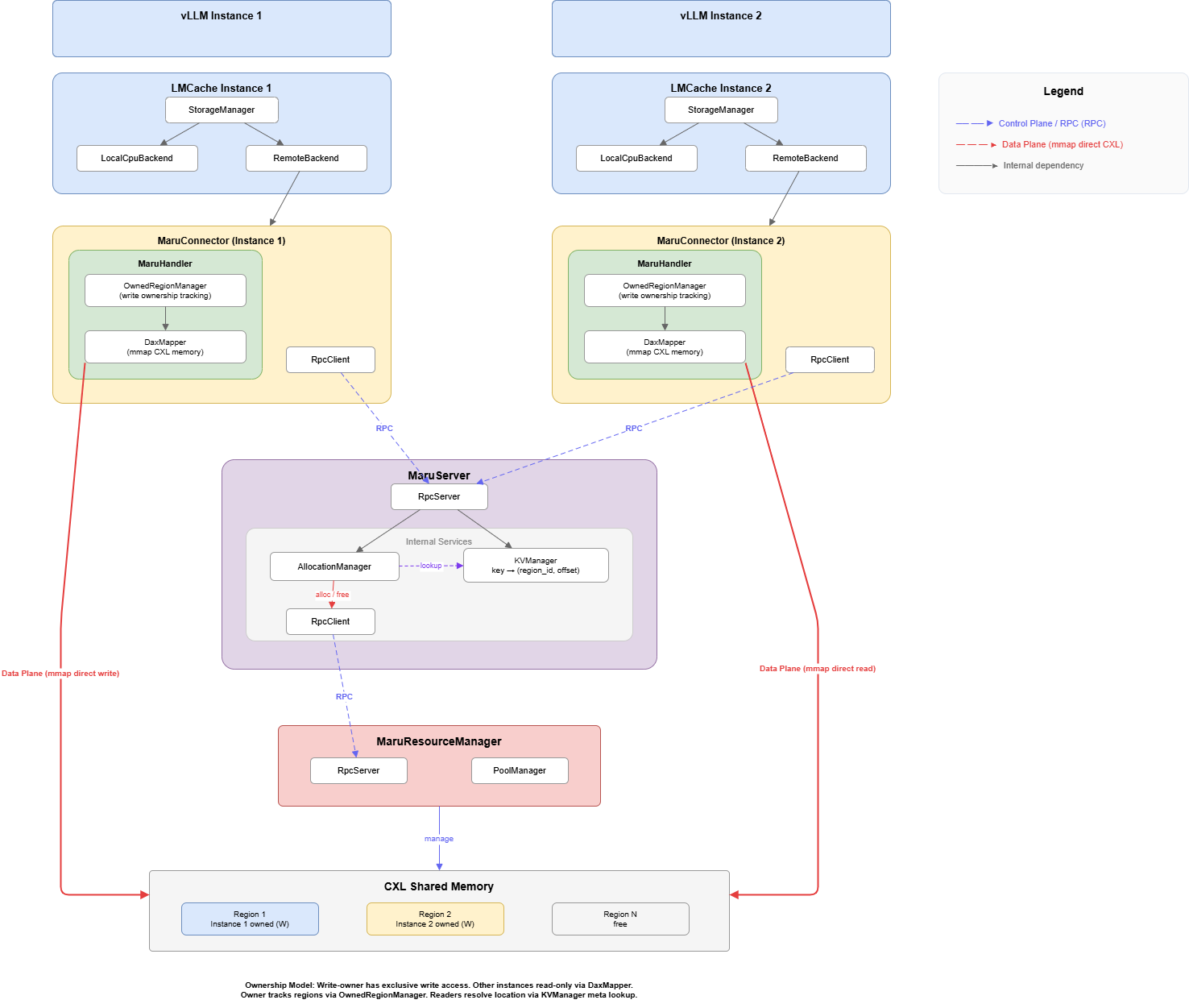

Component Architecture¶

Component-level architecture

Layer responsibilities:

Layer	Responsibility	Scope
LMCache stack	Inference engine → CacheEngine → StorageManager → RemoteBackend	LMCache (external)
MaruConnector	Adapts LMCache’s RemoteConnector to MaruHandler’s API	Integration boundary
MaruHandler	Client-side KV operations, memory mapping, connection management	Maru client
MaruServer	Central metadata store, memory allocation coordinator	Maru server

The integration boundary sits at MaruConnector. Everything above is LMCache; everything below is Maru. MaruConnector is the only component that imports from both projects.

Connector Design¶

LMCache defines a RemoteConnector interface that all remote storage backends must implement (exists, get, put, close, and batch variants). MaruConnector implements this interface by delegating to MaruHandler.

Why the connector pattern: LMCache’s RemoteBackend is designed for pluggable storage. The same StorageManager can use Redis, S3, Mooncake, or Maru without any change to the cache engine logic. MaruConnector slots in as one such plugin.

The key translation between the two APIs involves:

Key conversion — LMCache uses structured CacheEngineKey objects; MaruHandler uses string keys (CacheEngineKey.to_string()).
Zero-copy bridging — MaruHandler returns MemoryInfo (a memoryview wrapper) which the connector wraps as LMCache’s MemoryObj without copying data.
Batch optimization — The connector maps LMCache’s batch operations to MaruHandler’s batch RPC calls, reducing round-trip overhead.

Data Path¶

Store Path (write)¶

When the inference engine produces new KV cache data:

        sequenceDiagram
    participant IE as Inference Engine
    participant CE as CacheEngine
    participant MC as MaruConnector
    participant MH as MaruHandler
    participant MS as MaruServer
    participant CXL as CXL Memory

    IE->>CE: KV tensors (GPU)
    CE->>MC: put(key, MemoryObj)
    MC->>MH: alloc(size)
    MH-->>MC: handle (page in CXL region)
    MC->>CXL: write data via handle buffer (zero-copy)
    MC->>MH: store(key, handle)
    MH->>MS: register_kv(key, region_id, offset, length)
    MS-->>MH: success
    MH-->>MC: True
    MC-->>CE: done

Retrieve Path (read)¶

When the inference engine needs cached KV data:

        sequenceDiagram
    participant IE as Inference Engine
    participant CE as CacheEngine
    participant MC as MaruConnector
    participant MH as MaruHandler
    participant MS as MaruServer
    participant CXL as CXL Memory

    IE->>CE: Request KV for prompt prefix
    CE->>MC: get(key)
    MC->>MH: retrieve(key)
    MH->>MS: lookup_kv(key)
    MS-->>MH: region_id, offset, length
    MH->>CXL: Map shared region (if not already mapped)
    MH-->>MC: MemoryInfo (zero-copy memoryview)
    MC->>MC: Wrap as MemoryObj (zero-copy)
    MC-->>CE: MemoryObj
    CE-->>IE: KV tensors

The key design point is that data never travels over the network. Only metadata (region ID, offset, length) is exchanged via RPC. The actual KV tensor data is accessed directly from CXL shared memory through memory-mapped regions.

Configuration¶

Maru is loaded as an LMCache remote storage plugin (requires LMCache >= v0.3.14). Configuration is done via the LMCache YAML config file.

chunk_size: 256
local_cpu: True
max_local_cpu_size: 5
enable_async_loading: True

# Disable P2P for Maru shared storage mode
enable_p2p: False
enable_controller: False

# Maru backend — format: maru://<host>:<port>
remote_url: "maru://localhost:5555"
remote_serde: "naive"
remote_storage_plugins: ["maru"]

extra_config:
  remote_storage_plugin.maru.module_path: maru_lmcache.adapter
  remote_storage_plugin.maru.class_name: MaruConnectorAdapter
  maru_pool_size: "4G"              # CXL memory pool size ("1G", "500M", etc.)
  save_chunk_meta: False
  lookup_backoff_time: 0.001
  # maru_instance_id: "my-id"       # Unique client ID (default: auto UUID)
  # maru_operation_timeout: 10.0    # Per-operation timeout in seconds
  # maru_timeout_ms: 2000           # ZMQ socket timeout (ms)
  # maru_use_async_rpc: true        # Async DEALER-ROUTER RPC
  # maru_max_inflight: 64           # Max in-flight async requests

Plugin settings¶

Field	Description
`remote_storage_plugins: ["maru"]`	Registers Maru as a plugin backend
`remote_storage_plugin.maru.module_path`	Python module containing the adapter class
`remote_storage_plugin.maru.class_name`	Adapter class name (`MaruConnectorAdapter`)

Maru extra_config parameters¶

Parameter	Default	Description
`maru_pool_size`	`"1G"`	CXL memory pool size. Supports human-readable strings (`"4G"`, `"500M"`) or integer bytes
`maru_instance_id`	auto-generated UUID	Unique client instance identifier
`maru_operation_timeout`	`10.0`	Timeout in seconds for individual KV operations
`maru_timeout_ms`	`2000`	ZMQ socket timeout in milliseconds for RPC communication
`maru_use_async_rpc`	`true`	Use async DEALER-ROUTER pattern for higher throughput
`maru_max_inflight`	`64`	Max concurrent in-flight async RPC requests
`maru_server_url`	(from `remote_url`)	Override server URL. Normally not needed
`maru_auto_connect`	`true`	Auto-connect to MaruServer on initialization
`maru_eager_map`	`true`	Pre-map all shared regions on connect

For runnable examples, see LMCache Examples.

See also: Architecture Overview, MaruHandler Design, Python API Reference, Configuration Reference
